Armasight BNVD-40 Gen 3 White Phosphor Go Kit
Armasight BNVD-40 Gen 3 White Phosphor Go Kit
Couldn't load pickup availability
Share
By adding to cart, I understand, acknowledge, and agree to the Export Policy. I am a U.S. Person, and I do not intend to export this product.

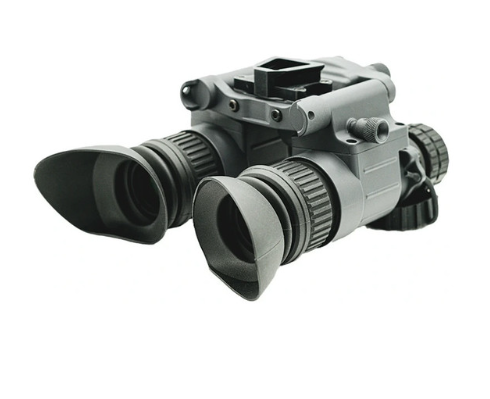

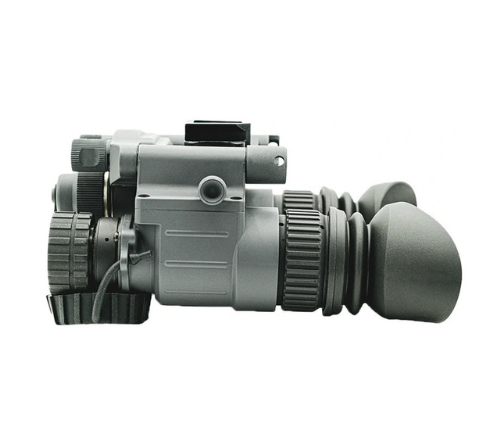

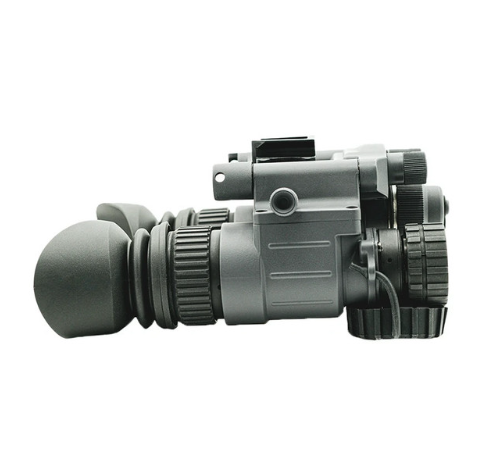

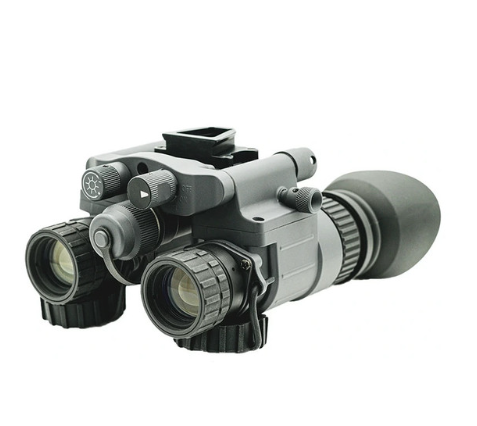

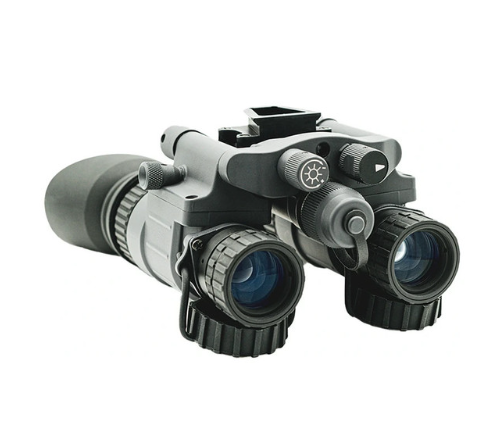

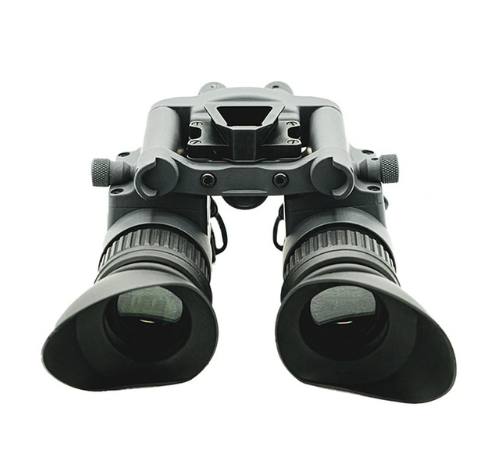

The Gen 3 White Phosphor BNVD-40 Go Kit is exclusively available with 1600+ FOM Ghost White Phosphor Image Intensifier Tubes, the preferred choice of elite special operators across the globe, and come equipped with a built-in infrared (IR) illuminator. The BNVD-40 allows you to navigate low-light areas and even read in complete darkness. This true dual-channel night vision goggle is available in a 40-degree field of view (FOV) version and comes with a BNVD-40 battery pack.
Armasight night vision products are encased in a tough yet compact housing that is both fog and water-resistant. The BNVD-40 Night Vision Binocular is designed to meet or exceed performance standards of military and law enforcement professionals, allowing you to maintain maximum situational awareness while navigating, observing, and tracking moving objects and vehicles.
Additional mounting options (sold separately) allow you to use the BNVD-40 as helmet-mounted night vision goggles, adding the ability to quickly and easily move them out of the way in an instant. The BNVD articulates, allowing for it to be configured for use as a monocular over either eye, preserving your biological night vision in one eye if desired.
The manual gain control lets you adjust the brightness level to your personal preference, and if the ambient light level exceeds the limits of the BNVD, the automatic protective system will shut off the Image Intensifier Tubes (ITT) to prevent damage while observing under changing light conditions.
Accomplish your mission with complete confidence using the Armasight BNVD-40 Go Kit.

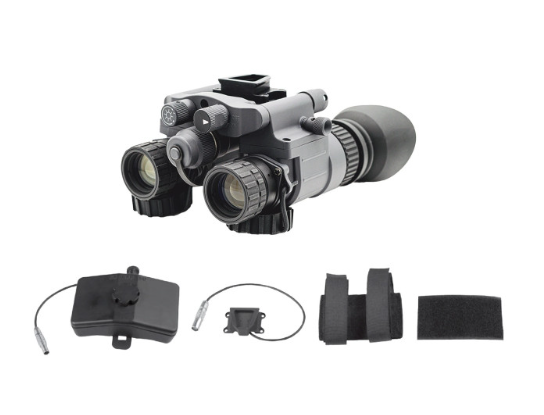

Package Contents
- BNVD-40 Night Vision Goggle
- BNVD-40 Battery Pack
- Lens Caps
- Eyecups
- Sacrificial Windows
- Demist Shields
- NVG (Dovetail) Interface Shoe
- Bayonet/Horn Interface Shoe
- Battery Key
- Product Manual
- Lens Cloth
- Soft Carrying Case
- CR123A battery
- 3 year limited warranty with registration
Specs
- Image Intensifier Tube Generation:
- Gen 3 Thin-Filmed Manual Gain Control
- Resolution:
- 64-81 lp/mm
- Zone 1 Spots Maximum Allowed:
- No spots of 0.003" or greater allowed
- Zone 2 Spots Maximum Allowed:
- 0 - 0.009" to 0.012" / 1 - 0.006" to 0.009" / 2 - 0.003" to 0.006"
- Zone 3 Spots Maximum Allowed:
- 0 - 0.009" to 0.012" / 1 - 0.006" to 0.009" / 3 - 0.003" to 0.006"
- Manual Gain Control:
- Yes
- Bright Light Cut-off:
- Yes
- Infrared Illuminator:
- Yes (Built-in)
- IR Indicator:
- Yes (in FOV)
- Magnification:
- 1x
- Lens System:
- F1.2; 27mm
- Field of View:
- 40°
- Focus Range:
- 0.25m to infinity
- Eye Relief:
- 25mm
- Exit Pupil:
- 14mm
- Diopter Adjustment:
- -6 to +2 dpt
- Power Supply:
- 1 x CR123A (3V) or 1 x AA (1.5V) Battery
- Battery Life:
- 12 Hours (1.5V) / 20 Hours (3V) at 20° C
- Low Battery Indicator:
- Yes (in FOV)
- Environmental Rating:
- IP67
- Operating Temperature:
- -51° C to +49° C (-60° F to + 120° F)
- Storage Temperature:
- -51° C to +85° C (-60° F to + 185° F)
- Dimensions:
- 137 x 73 x 118mm / 5.4 x 2.8 x 4.6in
- Weight:
- 0.64kg / 1.4lbs
- Warranty:
- 3 years w/ registration
- Color:
- Gray
Warranty
Warranty- Image Intensifier Tube Generation: Gen 3 Thin-Filmed Manual Gain Control
- Resolution: 64-81 lp/mm
- Zone 1 Spots Maximum Allowed: No spots of 0.003" or greater allowed
- Zone 2 Spots Maximum Allowed: 0 - 0.009" to 0.012" / 1 - 0.006" to 0.009" / 2 - 0.003" to 0.006"
- Zone 3 Spots Maximum Allowed: 0 - 0.009" to 0.012" / 1 - 0.006" to 0.009" / 3 - 0.003" to 0.006"
- Manual Gain Control: Yes
- Bright Light Cut-off: Yes
- Infrared Illuminator: Yes (Built-in)
- IR Indicator: Yes (in FOV)
- Magnification: 1x
- Lens System: F1.2; 27mm
- Field of View: 40°
- Focus Range: 0.25m to infinity
- Eye Relief: 25mm
- Exit Pupil: 14mm
- Diopter Adjustment: -6 to +2 dpt
- Power Supply: 1 x CR123A (3V) or 1 x AA (1.5V) Battery
- Battery Life: 12 Hours (1.5V) / 20 Hours (3V) at 20° C
- Low Battery Indicator: Yes (in FOV)
- Environmental Rating: IP67
- Operating Temperature: -51° C to +49° C (-60° F to + 120° F)
- Storage Temperature: -51° C to +85° C (-60° F to + 185° F)
- Dimensions: 137 x 73 x 118mm / 5.4 x 2.8 x 4.6in
- Weight: 0.64kg / 1.4lbs
- Warranty: 3 years w/ registration
- Color: Gray
