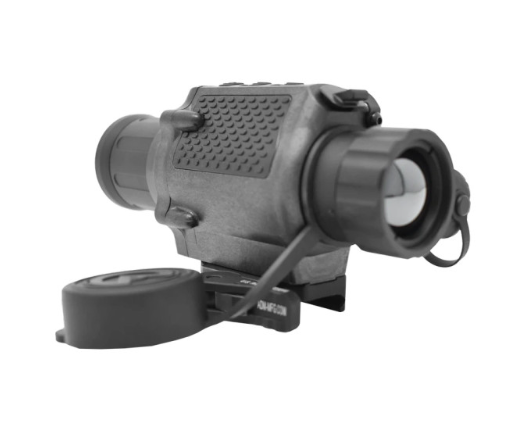

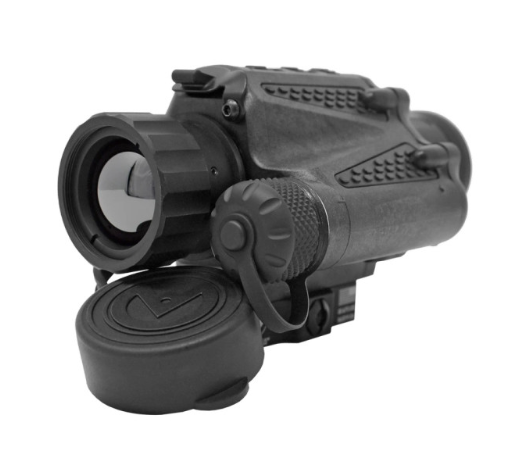

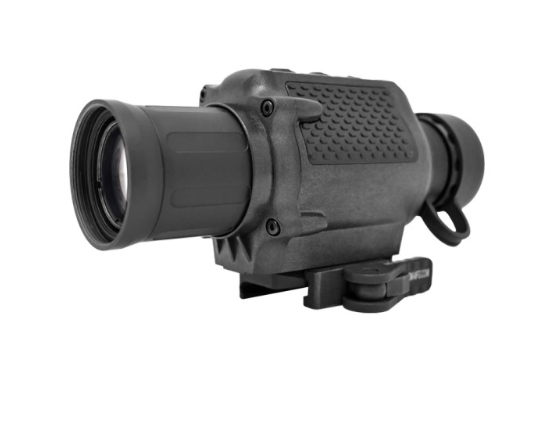

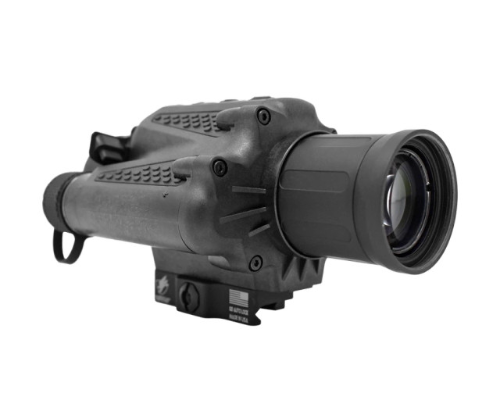

Jockey 640 Thermal Clip-On

The Jockey 640 is a compact, lightweight thermal clip-on optic designed for versatility in the field. Its simple alignment system works seamlessly with a wide range of optics, delivering smooth performance and outstanding clarity. Built on Armasight’s proven Iron Wolf thermal technology platform, the Jockey 640 uses the high-performance ArmaCORE 640 thermal core and a fast 60Hz frame rate for exceptional visual detail.

An extensive suite of features includes video and image capture, USB video streaming, and a USB-C interface for viewing your recordings and photos on external devices such as computers or televisions. The Jockey 640 offers multiple color palettes, intuitive three-button controls, long battery life, and a rugged design ready for outdoor use.

Features

• Multiple color palettes

• Intuitive 3-button controls

• 4 hours runtime at 20° C

• Image detail enhancement

• Simple alignment and digital zoom capabilities

• Video recording & image capture

• USB video stream

• USB-C interface for external devices

• Adjustable on-screen display options

• Battery status indicator

• ULTEM composite body and ergonomic design

• Designed and assembled in the USA from U.S. and global components

Package Includes

• Jockey 640 Compact Thermal Clip-On

• USB-C Cable

• Light Shield

• Calibration Target Sheet

• 2 × CR123A Battery

• Lens Cloth

• Soft Case

• Product Manual

Specs

• Detector Type: ArmaCORE™ 640 × 480 12um Thermal Core

• Refresh Rate: 60 Hz

• Thermal Sensitivity: NETD < 40mK

• Detection Range: 932m

• Recognition Range: 233m

• Identification Range: 146m

• Exit Pupil: 25mm

• Field of View: 17.6° x 13.2°

• Optical Magnification: 1x unity (optimized for paired use with optics up to 6x magnification)

• Digital Zoom: 1x – 4x

• Display: XGA (1024 x 768) OLED

• Wireless: None

• Graphics: Active on-screen graphics and icons

• Durability: Impact-tested for rugged outdoor use

• Lens System: F/1.00; 25mm manual focus

• Rear Collimator: f38mm

• Power Supply: 2 x CR123A (3V) or 1 x 16650 (3V)

• Battery Life: 4 hours at 20° C

• Memory: 4 hours of video

• Image Processing: Digital enhancement

• Environmental Rating: IP67

• Operating Temperature: -40° C to +50° C (-40° F to +122° F)

• Dimensions: 147.07 x 77.22 x 77.72 mm / 5.79 x 3.04 x 3.06 in

• Weight: 398g / 0.88lbs. (without accessories or battery)

• Warranty: 3 years w/ registration

• Color: Black

Compliance & Export Restrictions

⚠️ ITAR PRODUCT
By adding to cart, I understand, acknowledge, and agree to the Export Policy. I am a U.S. Person, and I do not intend to export this product.
