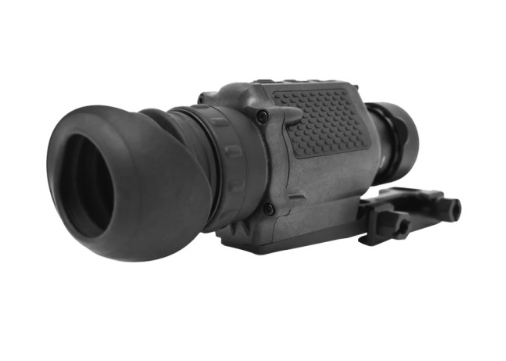

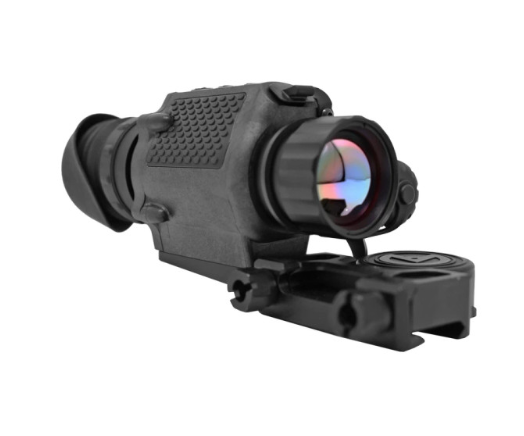

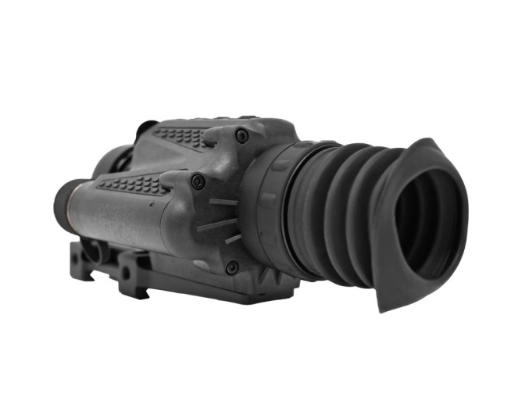

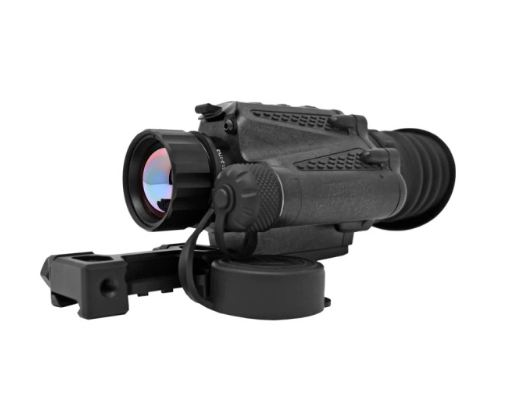

Armasight Collector 640 1-4x25 Compact Thermal Sight
Armasight Collector 640 1-4x25 Compact Thermal Sight
Couldn't load pickup availability
Share
⚠️ ITAR PRODUCT
By adding to cart, I understand, acknowledge, and agree to the Export Policy. I am a U.S. Person, and I do not intend to export this product.
The Collector 640’s compact and lightweight design keeps your favorite .308, rimfire, airgun, or crossbow nimble and responsive, and the Collector’s capabilities are optimized for use at the ranges these platforms are normally used. This unit boasts the ArmaCORE™ 640 thermal core, fast 60Hz frame rate for smooth operation and industry-best, outstanding visual acuity, based on Armasight’s Iron Wolf thermal technology platform. An extensive suite of features includes video and image capture, USB video stream, USB-C interface for viewing your recordings and photos on external devices such as computers or televisions. The Collector 640 offers multiple color palettes, intuitive simple 3 button controls, multiple reticle types and colors, and long battery life.
Features
- Multiple Color Palettes
- Intuitive 3-Button Controls
- 8+ Reticle Types
- 4 Hour Runtime at 20° C
- Image Detail Enhancement
- 1/2MOA Boresight
- Standard Picatinny Mount Included
- Video Recording & Image Capture
- USB Video Stream
- USB-C Interface for External Devices
- Inclinometer
- Levelometer
- Angle Cosine Indicator
- Reticle ON/OFF Selection
- Battery Status Indicator
- ULTEM Composite Body and Ergonomic Design
- Designed and Assembled in the USA from U.S. and Global Components
Package Includes
- Collector 640 1-4x25 Compact Thermal Sight
- USB-C Cable
- Thermal Zeroing Target
- 2 x CR123A Battery
- Lens Cloth
- Soft Case
- Product Manual
Specs
- Detector Type:
- ArmaCORE™ 640x480 12um Thermal Core
- Refresh Rate:
- 60 Hz
- Thermal Sensitivity:
- NETD < 40mK
- Detection Range:
- 932m on a Human Sized Target
- Recognition Range:
- 233m on a Human Sized Target
- Identification Range:
- 146m on a Human Sized Target
- Eye Relief:
- 45mm
- Field of View:
- 18.18° x 13.73°
- Optical Magnification:
- 1x
- Digital Zoom:
- 1 - 4x (1 - 4x total magnification)
- Display:
- XGA (1024 x 768) OLED
- Wireless:
- None
- Graphics:
- Active On-Screen Graphics and Iconology
- Recoil Rating:
- .308
- Lens System:
- F/1.00; 25mm
- Diopter Adjustment:
- -5 to +5 dpt
- Power Supply:
- 2 x CR123A (3V) or 1 x 16650 (3V)
- Battery Life:
- 4 hours at 20° C
- Memory:
- 4 Hours of Video
- Image Processing:
- Digital Enhancement
- Environmental Rating:
- IP67
- Operating Temperature:
- -40° C to +50° C (-40° F to + 122° F)
- Dimensions:
- 171.70 x 77.22 x 77.72 mm / 6.76 x 3.04 x 3.06 in
- Weight:
- 492g / 1.08lbs. w/ rubber eyecup; no battery
- Warranty:
- 3 years w/ registration
- Color:
- Black
Warranty
- Description
- Specs
- Warranty
- Shipping Policy
⚠️ ITAR PRODUCT
By adding to cart, I understand, acknowledge, and agree to the Export Policy. I am a U.S. Person, and I do not intend to export this product.
The Collector 640’s compact and lightweight design keeps your favorite .308, rimfire, airgun, or crossbow nimble and responsive, and the Collector’s capabilities are optimized for use at the ranges these platforms are normally used. This unit boasts the ArmaCORE™ 640 thermal core, fast 60Hz frame rate for smooth operation and industry-best, outstanding visual acuity, based on Armasight’s Iron Wolf thermal technology platform. An extensive suite of features includes video and image capture, USB video stream, USB-C interface for viewing your recordings and photos on external devices such as computers or televisions. The Collector 640 offers multiple color palettes, intuitive simple 3 button controls, multiple reticle types and colors, and long battery life.
Features
- Multiple Color Palettes
- Intuitive 3-Button Controls
- 8+ Reticle Types
- 4 Hour Runtime at 20° C
- Image Detail Enhancement
- 1/2MOA Boresight
- Standard Picatinny Mount Included
- Video Recording & Image Capture
- USB Video Stream
- USB-C Interface for External Devices
- Inclinometer
- Levelometer
- Angle Cosine Indicator
- Reticle ON/OFF Selection
- Battery Status Indicator
- ULTEM Composite Body and Ergonomic Design
- Designed and Assembled in the USA from U.S. and Global Components
Package Includes
- Collector 640 1-4x25 Compact Thermal Sight
- USB-C Cable
- Thermal Zeroing Target
- 2 x CR123A Battery
- Lens Cloth
- Soft Case
- Product Manual
- Detector Type:
- ArmaCORE™ 640x480 12um Thermal Core
- Refresh Rate:
- 60 Hz
- Thermal Sensitivity:
- NETD < 40mK
- Detection Range:
- 932m on a Human Sized Target
- Recognition Range:
- 233m on a Human Sized Target
- Identification Range:
- 146m on a Human Sized Target
- Eye Relief:
- 45mm
- Field of View:
- 18.18° x 13.73°
- Optical Magnification:
- 1x
- Digital Zoom:
- 1 - 4x (1 - 4x total magnification)
- Display:
- XGA (1024 x 768) OLED
- Wireless:
- None
- Graphics:
- Active On-Screen Graphics and Iconology
- Recoil Rating:
- .308
- Lens System:
- F/1.00; 25mm
- Diopter Adjustment:
- -5 to +5 dpt
- Power Supply:
- 2 x CR123A (3V) or 1 x 16650 (3V)
- Battery Life:
- 4 hours at 20° C
- Memory:
- 4 Hours of Video
- Image Processing:
- Digital Enhancement
- Environmental Rating:
- IP67
- Operating Temperature:
- -40° C to +50° C (-40° F to + 122° F)
- Dimensions:
- 171.70 x 77.22 x 77.72 mm / 6.76 x 3.04 x 3.06 in
- Weight:
- 492g / 1.08lbs. w/ rubber eyecup; no battery
- Warranty:
- 3 years w/ registration
- Color:
- Black
Shipping Policy for Armasight Products
-
Secure Packaging: All optics are securely packed to protect sensitive components such as the ArmaCORE™ 640×480 12μm thermal core and AMOLED display during transit.
-
Delivery Confirmation: Each order includes tracking information and delivery confirmation to ensure safe arrival of precision optics.
-
Battery Shipping Notice: Ships without CR123A batteries due to carrier regulations. Customers must purchase compatible 3V CR123A batteries separately.
-
Environmental Protection: Devices are rated IP67 and shipped in protective packaging to maintain their water and dust resistance during handling.
-
Temperature-Safe Transit: Units are rated for operation from -40°C to +50°C (-40°F to +122°F). Packaging is designed to minimize thermal shock in extreme weather conditions.
-
Signature Required: Due to the high-value nature of thermal optics, all shipments require a signature upon delivery.
-
Delivery Timeline: Please allow 3–10 business days for standard delivery, depending on location and stock availability.
-
Warranty Registration: Includes a 3-year warranty with product registration. Warranty support is provided after confirmed delivery.
